High Performance EMI Suppression for Stable Power Systems

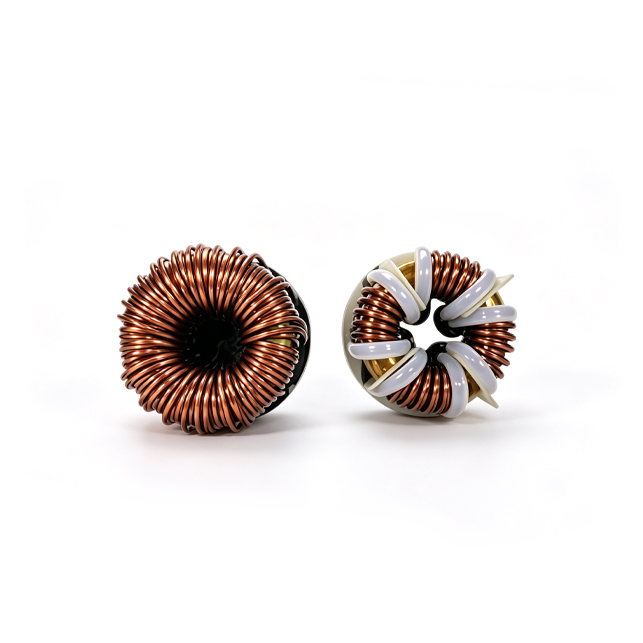

Dongguan Zhengmao Electronics Co., Ltd. manufactures Toroidal Common Mode Choke Inductors (Magnetic Ring Common Mode Inductors) designed for high-efficiency EMI filtering, noise suppression, and electromagnetic compatibility improvement in modern electronic systems.
With the increasing complexity of switching power supplies, industrial equipment, and renewable energy systems, electromagnetic interference has become a critical issue affecting system stability and signal integrity. Our toroidal common mode chokes are engineered to effectively suppress high-frequency noise while maintaining stable current transmission and low power loss.
Using high-quality ferrite toroidal cores and precision winding technology, these inductors provide excellent filtering performance, strong thermal stability, and reliable long-term operation in harsh electrical environments.
Product Advantages
Excellent EMI Noise Suppression
Effectively filters common mode noise in power lines and improves electromagnetic compatibility.
Toroidal Magnetic Structure
Ring-shaped core design provides high magnetic efficiency and strong interference suppression.
Low Leakage Magnetic Field
Reduces external electromagnetic radiation and improves system stability.
High Current Capability
Supports stable operation in industrial and power electronic applications.
Low Power Loss
High-quality ferrite materials ensure efficient energy transfer and reduced heat generation.
Strong Thermal Stability
Designed for continuous operation under high-load conditions.
Reliable Industrial Performance
Suitable for demanding environments requiring long-term stable operation.
Application Areas
Toroidal common mode choke Inductors are widely used in:
Switching Power Supplies (SMPS)
Provides effective noise filtering and power stabilization.
Industrial Automation Systems
Ensures stable operation of PLC and control systems.
EV Charging Equipment
Reduces EMI interference in charging stations and power modules.

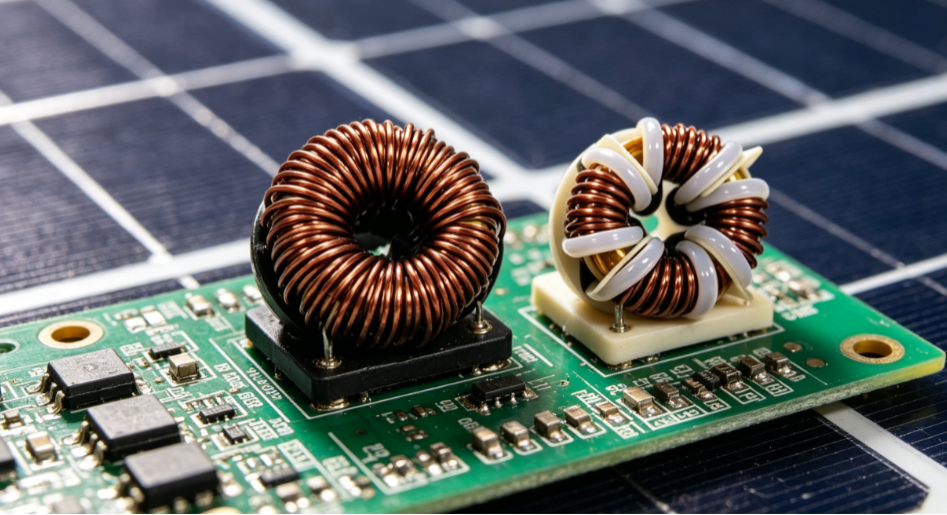

Renewable Energy Systems
Used in solar inverters and energy storage equipment.
Communication Equipment
Improves signal integrity and reduces noise interference.
Consumer Electronics
Applied in adapters, chargers, and compact power devices.
Technical Specifications
Item | Description |
Product Name | Toroidal Common Mode Choke Inductor |
Product Type | EMI filter inductor |
Core Material | Ferrite Toroidal Core |
Structure | Ring Type (Toroidal) |
Function | EMI / EMC Noise Suppression |
Rated Current | Customizable |
Inductance | Customizable |
Frequency Range | High Frequency |
Mounting Type | Through Hole / Wire Type |
Operating Temperature | -40°C to +125°C |
OEM & ODM | Supported |
Certifications | ISO9001 / UL / IATF16949 |
Manufacturing Capability
Dongguan Zhengmao Electronics Co., Ltd. adopts advanced magnetic component manufacturing technology and strict quality control systems to ensure stable EMI performance.
Our production process includes:
Precision toroidal core winding
Dual-line winding for common mode structure
Inductance and impedance testing
EMI suppression performance verification
High-voltage insulation testing
Thermal stability testing
Aging reliability validation
Full inspection before shipment
Customized EMI Filter Solutions
We provide customized toroidal common mode choke solutions based on customer EMC and circuit design requirements.
Customization options include:
Core size and material selection
High current optimization
Inductance value customization
Low leakage design
EMI suppression enhancement
Industrial-grade insulation improvement
Wire gauge and winding adjustment
Our engineering team supports full customization from design to mass production.
Why Choose Dongguan Zhengmao Electronics Co., Ltd.
Professional Magnetic Component Manufacturer
We specialize in inductors, transformers, and EMI filter components for industrial and new energy applications.
Advanced Manufacturing System
Automated winding and testing systems ensure stable product performance.
Strong OEM & ODM Capability
Flexible customization according to customer EMC requirements.
Strict Quality Control
Products comply with ISO9001, UL, and IATF16949 standards.
Fast Technical Support
Experienced engineering team provides quick response and optimization support.
FAQ
What is a toroidal common mode choke?
It is a ring-shaped magnetic component used to suppress electromagnetic noise in power lines.
What is the advantage of toroidal structure?
It provides high efficiency, low leakage magnetic field, and strong EMI suppression performance.
Where are these inductors used?
They are widely used in power supplies, EV chargers, industrial equipment, renewable energy systems, and communication devices.
Can you customize specifications?
Yes. Dongguan Zhengmao Electronics Co., Ltd. provides full OEM & ODM customization services.
